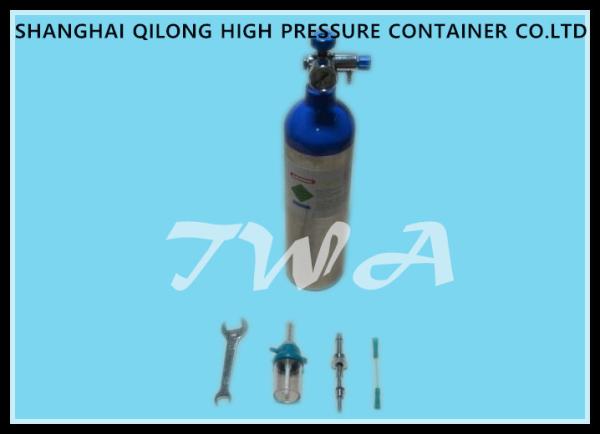

DOT 0.3L High Pressure Aluminum Alloy Gas Cylinder Safety Gas
Cylinder for Use CO2 Beverage
Specifications:
| Name | DOT 0.3L High Pressure Aluminum Alloy Gas Cylinder Safety Gas
Cylinder for Use CO2 Beverage |
| Type | DOT-3AL 1800 |
| Volume(cu.in/L) | 0.3L/18.lcu,in |
| Diameter(inch/mm) | 51mm/2‘’ |
| Length (inch/mm) | 238mm/9.37in |
Weight(lbs/kg) | 0.37kg/0.82lbs |
Working pressure
(psi/bar) | 124bar/1800psi |
| Material | 6061 |
| Test pressure(psi/bar) | 210bar/3000psi |
| Standard | DOT/EN/ISO/GB
|
Description:
1. Cylinder are made from high strength Aluminum Alloy
6061-t6,reliable in durability,
fiacture toughness and resistance to tearing and cracking.
2. Highly corrosion-resistance to tearing and exterior---ideal for
wet gases.
3. Cylinders perform well at low temperatures.
4. Lightweight -up to 40 percent lighter than comparable steel
cylinder and in consistent
weight ,cosistent weight ,cosistent thickness resist damage .
5. Brushed external surface provides a low -maintenance finsh .
6. Cylinder meet or exceed International standards.
7. Cylinders cycle -tested in excess of 100,000 cycle at service
pressure .Excess of 12000
cycles at test pressure.
8. Minimum burst pressure tasted up to 2.5 times service pressure
without failure .
| Size | Specification | Diameter
(mm/inch) | Length
(L/inch) | Volume
(L/CU.IN | Weight
(kg/lbs) | Working
pressure
(bar/psi) | Test
pressure
(bar/psi) |
| 70z | DOT-3AL-1800(2.0")
| 51mm/2‘’ | 238mm/
9.37in | 0.3L/
18lcu.in | 0.37kg/
0.82lbs | 124bar/
1800psi | 210bar/
3000psi |
| 90z | DOT-3AL-
1800(2.126") | 54mm/2.126" | 245mm/
9.65in | 0.38L/
23.2cu.in | 0.38kg/
0.83lbs | 124bar/1
800psi | 210bar/
3000psi |
| 12oz | DOT-3AL-
1800(2.52") | 64mm/2.52 | 245mm/
9.65in | 0.51L/
41.5cu.in | 0.49kg/
1.09lbs | 124bar/
1800psi | 210bar/
3000psi |
| 16oz | DOT-3AL-
1800(3.205") | 81mm/3.205" | 2.5mm/
8.07in | 0.68L/
41.5cu.in | 0.72kg/
1.58lbs | 124bar/
1800psi | 210bar/
3000psi |
| 20oz | DOT-3AL-
1800(3.205") | 81mm/3.205" | 245mm/
9.65in | 0.85L/
51.7cu.in | 0.8kg/
1.58lbs | 124bar/
1800psi | 210bar/
3000psi |
| 47ci | DOT-3AL-
3000(3.55") | 90mm/3.55 | 210mm/
8.27in | 0.7L/
42.7cu.in | 1.22kg/
2.69lbs | 210bar/
3000psi | 350bar/
5000psi |
| M6 | DOT-3AL-
2216(3.205") | 81mm/3.205" | 295mm/
11.6in | 1L/
61cu.in | 1.14kg/
2.52lbs | 155bar/
2216psi | 260bar/
3695psi |
| ML6 | DOT-3AL-2015(4.38") | 111.2nn/4.38 | 195mm/
7.68in | 1.08L/
66cu.in | 1.34kg/
2.96lbs | 139bar/
2015psi | 232bar/
3360psi |
| MC | DOT-3AL-
2015(4.38") | 111.2nn/4.38 | 276mm/
10.88in | 1.68L/
103cu.in | 1.75kg/
3.86lbs | 139bar/
2015psi | 232bar/
3360psi |
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good
reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder
(Long-term Contract).
6. We have more than 15 years exported experience for high pressure
container products.
