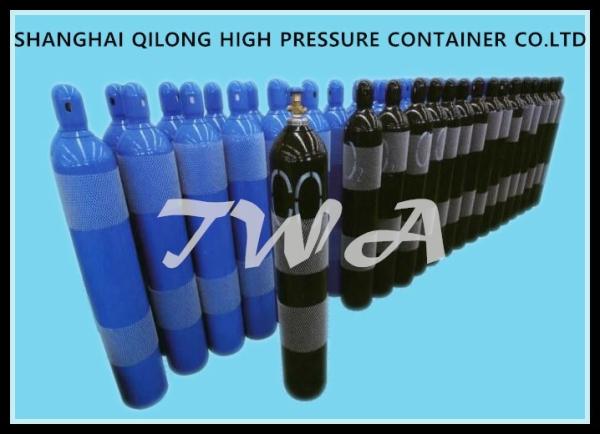

2-15L Seamless Steel gas Cylinder(Alloy steel) High Pressure Gas
Cylinder High Corrosion Resistance
Specifications:
| Name | 2-15L Seamless Steel gas Cylinder(Alloy steel) High Pressure Gas
Cylinder High Corrosion Resistance |
| Type | Alloy steel 2-15L |
| Water Capacity | 2-15L |
| Outside Diameter | 108-159 |
Design wall
thickness(mm) | 2.5-3.6 |
| Material | 34CrMo (TPED) |
| Weight(kg) | 3.3-17.5 |
| Working pressure | 200BAR |
| Height | 3.5-941 |
| Standard | DOT/EN/ISO/GB |
ISO9809, DOT, GB, EN certificated welding empty big gas cylinder
(Please find the form) :
Below specification are all for standard sizes, we can also supply
you customized cylinder as you request.
STEEL CYLINDER, ALUMINUM CYLINDER, SEAMLESS STEEL CYLINDER, GAS
CYLINDER
Outside
Diameter
(mm) | Volume
(mm) | Cylinder
Height(kg) | Cylinder
Weight(kg) | Min.wall
Thickness
(mm) | Max.
Working
Pressure
(bar) | Test
Pressure
(bar) | Material
Grades |
| 108 | 2 | 305 | 3.3 | 2.5 | 200 | 300 | 34CrMo4 |
| 3 | 431 | 4.4 |
| 4 | 555 | 5.5 |
| 5 | 681 | 6.6 |
| 121 | 3 | 375 | 4.8 | 2.8 |
| 3.4 | 405 | 5.2 |
| 4 | 470 | 5.8 |
| 5 | 565 | 6.8 |
| 140 | 4 | 379 | 6.4 | 3.2 |
| 6 | 450 | 7.2 |
| 6.7 | 572 | 8.6 |
| 7 | 594 | 8.9 |
| 8 | 667 | 9.9 |
| 10 | 814 | 11.8 |
| 159 | 8 | 541 | 10.6 | 3.6 |
| 10 | 654 | 12.5 |
| 13.4 | 847 | 15.9 |
| 15 | 941 | 17.5 |
Discription:
● 37 Mn steel gas cylinders are used to store breathable air and
industrial gases for use
in a variety of industrial and commercial applications. For
example, nitrogen cylinders and
helium cylinders for industrial use, etc.
● Working pressure of 37Mn steel gas cylinders is 15 Mpa, the
service life will be 15 years.
The water capacity varies from 25L to 50L.OD(diameter): 219mm,
232mm. More
specifications are available.
● Steel gas cylinders made of 34CrMo4, 25 Mpa are available as
well.
● All the steel gas cylinders are manufactured according to ISO9809
standard and are
compatible with standard accessories such as valves.
1. Brushed external surface provides a low -maintenance finsh .
2. Cylinders meet or exceed all regulatory standards worldwide.
3. Cylinders cycle -tested in excess of 100,000 cycle at service
pressure .Excess of 12000
cycles at test pressure.
4. Minimum burst pressure tasted up to 2.5 times service pressure
without failure .
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good
reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder
(Long-term Contract).
6. We have more than 15 years exported experience for high pressure
container products.
