| Part No. | Specification | Water Capacity | Outside Diameter(mm) | Length(mm) | Wall Thickness(mm) | Weight(kg) | Service Pressure(bar) |
| C1 | LW-111-1.68-15-H | 1.68 | 111 | 280 | 5.5 | 1.8 | 150 |
| C2 | LW-111-2.0-15-H | 2.0 | 111 | 340 | 5.5 | 2.1 | 150 |
| C3 | LW-120-2.8-15-H | 2.8 | 120 | 392 | 6.1 | 2.9 | 150 |
| C4 | LW-120-3.2-15-H | 3.2 | 120 | 437 | 6.1 | 3.2 | 150 |
| C5 | LW-140-4.0-15-H | 4.0 | 140 | 410 | 7.1 | 4.2 | 150 |
| C6 | LW-140-6.3-15-H | 6.3 | 140 | 605 | 7.1 | 5.8 | 150 |
| C7 | LW-159-10.0-15-H | 10.0 | 159 | 730 | 8.0 | 8.8 | 150 |
| C8 | LW-203-12.0-15-H | 12.0 | 203 | 592 | 10.3 | 13.0 | 150 |
| C9 | LW-203-13.5-15-H | 13.5 | 203 | 649 | 10.3 | 14.0 | 150 |
| C10 | LW-203-20.0-15-H | 20.0 | 203 | 900 | 10.3 | 17.0 | 150 |
| C11 | LW-232-30.0-15-H | 30.0 | 232 | 1008 | 11.7 | 26.0 | 150 |
| C12 | LW-232-40.0-15-H | 40.0 | 232 | 1300 | 11.7 | 32.0 | 150 |
| C13 | LW-250-50.0-20-H | 50.0 | 250 | 1500 | 16.7 | 55.0 | 200 |
Description:
1. High inter cleanliness and odourlessness after special tretment.
2. Highly corrosion-resistant interior and exterior---ideal for wet
gases.
3. Lightweight--up to 30 percent lighter than comparable steel
cylinders.
4. Thick,consistent walls resist damage.
5. Consistent weight.
Working Principle:

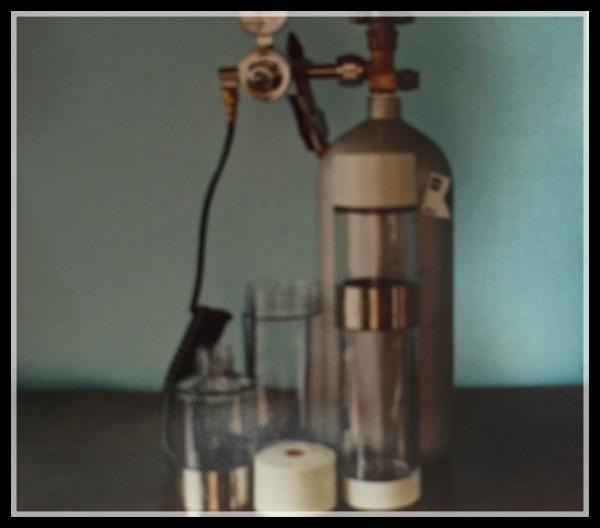

1. The soda water machine is composed of a high pressure vessel and
a set of special equipment (soda water machine), the high pressure
vessel is the source of the whole set of equipment.
2. The high pressure gas is output by the high pressure vessel, and
the high pressure gas is mixed with the edible water in a special
device.
FEATURES:
Easy operation, stable pressure and enough gas sense
Can produce up to 100L of soda, economical and practical
Durable plastic material
CO2 gas cylinder recycle use, with original pressure regulating
system
Strict standards of FDA/ CE/RoHS quality certification
Adopts PET bottle of pressure resistant performance, no pollution
Clean skin and body
Remove pesticides and bacteria in the vegetable & fruit
Remove fishy smell of the fish, keep fresh
Boil steamed rice, luster color and taste good
