Brand Name : | TWA |
Model Number : | Protection system 1-80L |
Certification : | DOT,ISO,EN,GB |
Price : | Negotiate |
Payment Terms : | L/C,T/T,30%TT in advance by big gas cylinder |
Supply Ability : | 60000 Piece/Pieces per Month big gas cylinder |
Delivery Time : | 25~35days |

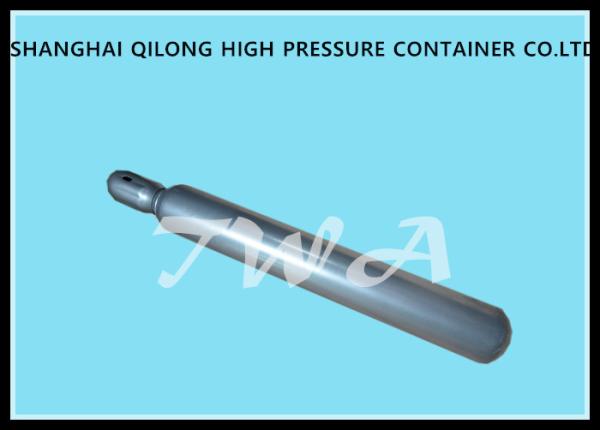

80L Seamless Steel Gas Cylinder For Fire Protection System Starting
Specifications:
Name | 1-80L Seamless Steel Gas Cylinder For Fire Protection System Starting |
Type | Protection system 1-80L |
Water Capacity | 1-80L |
Outside Diameter | 89-267 |
Min.wall | 2.5-5.8 |
Material | 34CMn |
Weight(kg) | 1.72-75.4kg |
Working pressure | 150bar |
Height | 240-1710 |
Standard | DOT/EN/ISO/GB |
ISO9809, DOT, GB, EN certificated welding empty big gas cylinder (Please find the form) :
Below specification are all for standard sizes, we can also supply
you customized cylinder as you request.
Out- | Volume | Cylinder | Cylinder | Min.wall | Max.working | Test | Material |
89 | 1 | 240 | 1.72 | 2.5 |
|
|
|
1.2 | 277 | 1.95 | |||||
108 | 2 | 310 | 3.6 | 2.9 | |||
4 | 565 | 6.2 | |||||
121 | 4 | 470 | 5.8 | 3.5 | |||
140 | 4 | 373 | 6.4 | 4.1 | |||
6 | 523 | 8.8 | |||||
10 | 838 | 13.5 | |||||
152 | 10 | 705 | 12.6 | 4.4 | |||
219 | 40 | 1310 | 47.8 | 5.7 | |||
267 | 70 | 1513 | 67.3 | 5.8 | |||
80 | 1710 | 75.4 |
Discription:
●37 Mn steel gas cylinders are used to store breathable air and
industrial gases for use
in a variety of industrial and commercial applications. For
example, nitrogen cylinders and
helium cylinders for industrial use, etc.
●Working pressure of 37Mn steel gas cylinders is 15 Mpa, the
service life will be 15 years.
The water capacity varies from 25L to 50L.OD(diameter): 219mm,
232mm. More
specifications are available.
●Steel gas cylinders made of 34CrMo4, 25 Mpa are available as well.
●All the steel gas cylinders are manufactured according to ISO9809
standard and are
compatible with standard accessories such as valves.
1.Brushed external surface provides a low -maintenance finsh .
2.Cylinders meet or exceed all regulatory standards worldwide.
3.Cylinders cycle -tested in excess of 100,000 cycle at service pressure .Excess of 12000
cycles at test pressure.
4.Minimum burst pressure tasted up to 2.5 times service pressure without failure .
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good
reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder (Long-term Contract).
6.We have more than 15 years exported experience for high pressure
container products.
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not
in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,
balance before shippment.
![]() |
