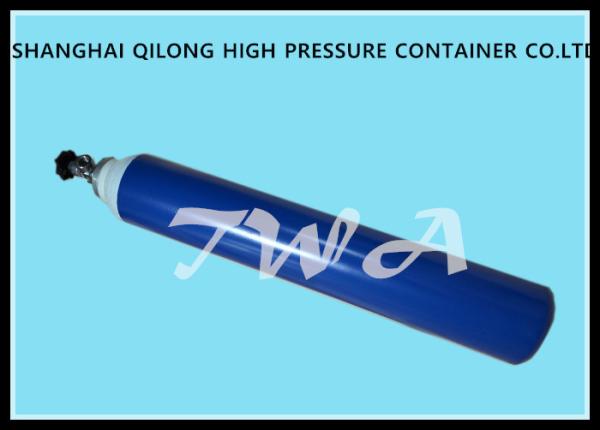

High Capacity 10.7L Industrial Gas Cylinder Welding Empty Gas
Cylinder Steel Pressure
Specifications:
| Name | High Capacity 10.7L Industrial Gas Cylinder Welding Empty Gas
Cylinder Steel Pressure TWA |
| Type | ISO9809 204-10.7-166.7 |
| Water Capacity | 10.7L |
| Outside Diameter | 204 |
Design wall thickness(mm) | 3.8 |
| Material | 34CrMo4 |
| Weight(kg) | 14.2kg |
| Working pressure | 166.7bar |
| Height | 480 |
| Standard | DOT/EN/ISO/GB |
ISO9809, DOT, GB, EN certificated welding empty big gas cylinder
(Please find the form) :
Below specification are all for standard sizes, we can also supply
you customized cylinder as you request.
ISO9809 Standdrd Steel Cylinder:
| Type | Outside diameter (mm) | Water Capacity (L) | Design wall thickness (mm) | Material | Height (mm) | Weight (kg) | Working pressure (bar) |
| ISO9809 204-107-166.7 | 204 | 10.7 | 3.8 | 34CrMo4 | 480 | 14.2 | 166.7 |
| ISO9809 204-13.4-166.7 | 204 | 13.4 | 3.8 | 34CrMo4 | 570 | 16.3 | 166.7 |
| ISO9809 204-20-166.7 | 204 | 20 | 3.8 | 34CrMo4 | 800 | 21.7 | 166.7 |
| ISO9809 204-26.8-166.7 | 204 | 26.8 | 3.8 | 34CrMo4 | 1040 | 27.5 | 166.7 |
| ISO9809 204-10.7-200 | 204 | 10.7 | 4.6 | 34CrMo4 | 485 | 16 | 200 |
| ISO9809 204-13.4-200 | 204 | 13.4 | 4.6 | 34CrMo4 | 580 | 19 | 200 |
| ISO9809 204-20-200 | 204 | 20 | 4.6 | 34CrMo4 | 810 | 25 | 200 |
| ISO9809 204-26.8-200 | 204 | 26.8 | 4.6 | 34CrMo4 | 1050 | 31.5 | 200 |
| ISO9809 204-13.4-166.7 | 204 | 13.4 | 5.1 | 34CrMo | 590 | 21 | 166.7 |
| ISO9809 219-38-150 | 219 | 38 | 5.7 | 34Mn2V | 1300 | 53 | 150 |
| ISO9809 219-40-150 | 219 | 40 | 5.7 | 34Mn2V | 1360 | 55 | 150 |
| ISO9809 219-45-150 | 219 | 45 | 5.7 | 34Mn2V | 1520 | 62 | 150 |
| ISO9809 229-40-166.7 | 229 | 40 | 4.8 | 34CrMo4 | 1240 | 45 | 166.7 |
| ISO9809 229-46.7-166.7 | 229 | 46.7 | 4.8 | 34CrMo4 | 1430 | 51 | 166.7 |
| ISO9809 229-50-166.7 | 229 | 50 | 4.8 | 34CrMo4 | 1520 | 53 | 166.7 |
| ISO9809 229-40-200 | 229 | 40 | 5.2 | 34CrMo4 | 1250 | 47 | 200 |
| ISO9809 229-45-200 | 229 | 45 | 5.2 | 34CrMo4 | 1370 | 52 | 200 |
| ISO9809 229-50-200 | 229 | 50 | 5.2 | 34CrMo4 | 1530 | 57 | 200 |
| ISO9809 229-40-200 | 229 | 40 | 5.4 | 34CrMo34CrMo4 | 1250 | 53 | 200 |
| ISO9809 229-45-200 | 229 | 45 | 5.4 | 34CrMo34CrMo4 | 1370 | 58 | 200 |
| ISO9809 229-50-200 | 229 | 50 | 5.4 | 34CrMo34CrMo4 | 1530 | 63 | 200 |
| ISO9809 229-40-150 | 229 | 40 | 5.7 | 34CrMo | 1260 | 55 | 150 |
| ISO9809 229-30-200 | 229 | 30 | 5.7 | 34CrMo34CrMo4 | 975 | 44 | 200 |
| ISO9809 229-40-200 | 229 | 40 | 5.7 | 34CrMo34CrMo4 | 1260 | 55 | 200 |
| ISO9809 229-45-200 | 229 | 45 | 5.7 | 34CrMo34CrMo4 | 1370 | 58 | 200 |
| ISO9809 229-50-200 | 229 | 50 | 5.7 | 34CrMo34CrMo4 | 1530 | 65 | 200 |
| ISO9809 229-50-200 | 229 | 50 | 7.8 | 34CrMo | 1600 | 83 | 200 |
| ISO9809 232-40-166.7 | 232 | 40 | 5.5 | 34Mn2V | 1230 | 52 | 166.7 |
| ISO9809 232-46.7-166.7 | 232 | 46.7 | 5.5 | 34Mn2V | 1400 | 58 | 166.7 |
| ISO980920 232-50-166.7 | 232 | 50 | 5.5 | 34Mn2V | 1500 | 62 | 166.7 |
Discription:
1. Brushed external surface provides a low -maintenance finsh .
2. Cylinders meet or exceed all regulatory standards worldwide.
3. Cylinders cycle -tested in excess of 100,000 cycle at service
pressure .Excess of 12000
cycles at test pressure.
4. Minimum burst pressure tasted up to 2.5 times service pressure
without failure .
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good
reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder
(Long-term Contract).
6. We have more than 15 years exported experience for high pressure
container products.
