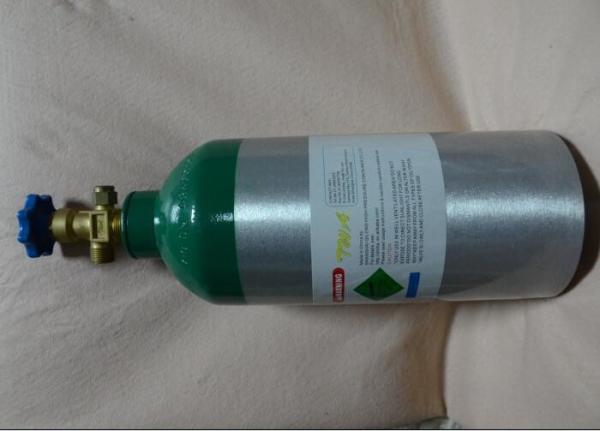

DOT-3AL 3.36L Aluminum Alloy Gas Cylinder Safety Gas Cylinder for
Use CO2 Beverage
Specifications:
| Name | DOT-3AL 3.36L Aluminum Alloy Gas Cylinder Safety Gas Cylinder for
Use CO2 Beverage |
| Type | DOT-3AL 2015 |
| Volume(in3/L) | 205/3.36/ |
| Diameter(in/mm) | 5.25/133.35 |
| Length (in/mm) | 14.17/360 |
Weight(Lbs/kg) | 6.9/3.2 |
Service pressure (psi/Mpa) | 1800/12.4 |
| Material | 6061 |
| Test pressure(psi/Mpa) | 3000/20.7 |
| Standard | DOT/EN/ISO/GB
|
Description:
1.Cylinder are made from high strength Aluminum Alloy
6061-t6,reliable in durability,
fiacture toughness and resistance to tearing and cracking.
2.Highly corrosion-resistance to tearing and exterior---ideal for
wet gases.
3.Cylinders perform well at low temperatures.
4.Lightweight -up to 40 percent lighter than comparable steel
cylinder and in consistent
weight ,cosistent weight ,cosistent thickness resist damage .
5.Brushed external surface provides a low -maintenance finsh .
6.Cylinder meet or exceed International standards.
7.Cylinders cycle -tested in excess of 100,000 cycle at service
pressure .Excess of 12000
cycles at test pressure.
8.Minimum burst pressure tasted up to 2.5 times service pressure
without failure .
| Size | Specification | Diameter (in/mm) | Volume | Length (in/mm) | Weight (Lbs/kg) | Service pressure (psi/Mpa) | Test pressure (psi/Mpa) | Material |
| ME | DOT-3AL2015 (4.38'-283in3) | 4.38/111.25 | 283/4.64 | 25.93/658 | 8.65/4 | 2015/13.9 | 3360/23.2 | 6061 |
| MD | DOT-3AL2015 (4.38'-172in3) | 4.38/111.25 | 172/2.82 | 16.71/425 | 5.92/2.7 | 2015/13.9 | 3360/23.2 | 6061 |
| DOT-3AL2015 (4.38'-89in3) | 4.38/111.25 | 89/1.45 | 9.81/25 | 4/1.82 | 2.15/13.9 | 3360/23.2 | 6061 |
| DOT-3AL2015 (5.25'-2.5in3) | 5.25/133.35 | 205/3.36 | 14.17/360 | 6.9/3.2 | 2015/13.9 | 3000/20.7 | 6061 |
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good
reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder
(Long-term Contract).
6.We have more than 15 years exported experience for high pressure
container products.
